KIND OF CONVOLUTION AND MOULDING PROCESS
|
Extra flexible hoses from DN 10 to DN
150 with parallel ondulation and very strict
thread; Omega profile.
|
STANDARD SUPPLY MATERIALS
|
Stainless
steel AISI 321 and AISI 316L.
|
STANDARD PLAITS
|
One or two
more stainless austenitic steel braids AISI 304.
|

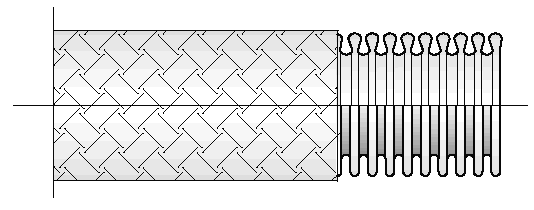

KINDS OF GIFLEX PIPES
|
GIFLEX "SS" : WITHOUT
EXTERNAL BRAID
GIFLEX "SS1" : ONE BRAID COATED
GIFLEX "SS2" : TWO BRAIDS COATED
|
|
DN
|
Øi
|
Bend radius constant flexure
|
Bend radius permanent bending
|
Hose type
Giflex "SS"
|
Hose type
Giflex "SS1"
|
Hose type
Giflex "SS2"
|
|
mm
|
mm
|
mm
|
De
mm
|
Pn
Kg/cm2
|
De
mm
|
Pn
Kg/cm2
|
De
mm
|
Pn
Kg/cm2
|
|
SS
|
SS1
|
SS2
|
|
3/8"
|
10
|
100
|
150
|
160
|
30
|
16,20
|
3,0
|
17,70
|
75
|
19,00
|
105
|
|
1/2"
|
12
|
130
|
195
|
210
|
30
|
19,50
|
2,5
|
21,00
|
70
|
22,30
|
100
|
|
5/8"
|
15
|
170
|
255
|
270
|
35
|
24,00
|
2,0
|
25,50
|
65
|
27,00
|
90
|
|
3/4"
|
20
|
190
|
290
|
305
|
40
|
29,00
|
1,8
|
30,50
|
50
|
32,00
|
75
|
|
1"
|
25
|
210
|
320
|
330
|
50
|
36,80
|
1,8
|
38,30
|
40
|
39,80
|
60
|
|
1"1/4
|
32
|
220
|
330
|
340
|
65
|
44,00
|
1,5
|
46,00
|
35
|
48,00
|
50
|
|
1"1/2
|
40
|
260
|
400
|
410
|
80
|
52,50
|
1,2
|
54,50
|
30
|
56,50
|
40
|
|
2"
|
50
|
300
|
450
|
460
|
100
|
66,00
|
0,6
|
68,00
|
25
|
70,00
|
32
|
|
2"1/2
|
65
|
360
|
540
|
550
|
140
|
86,00
|
0,6
|
88,50
|
20
|
91,00
|
28
|
|
3"
|
80
|
420
|
640
|
650
|
160
|
98,20
|
0,5
|
100,00
|
18
|
103,20
|
22
|
|
4"
|
100
|
550
|
840
|
860
|
200
|
125,50
|
0,5
|
128,00
|
14
|
130,50
|
20
|
|
5"
|
125
|
625
|
950
|
980
|
260
|
152,00
|
0,4
|
154,50
|
12,5
|
157,50
|
18
|
|
6"
|
150
|
750
|
1150
|
1200
|
300
|
178,00
|
0,4
|
180,00
|
10
|
183,00
|
15
|
NOTE:
This kind of hose is suggest for an using with a lot of
cicle. It is also guarantee for the carriage of all
the fluids, liquid or gasses, compatible with stainless
steel and with pressure or depressore. It is
perfeckt as vibration eliminator for unloaded gas piping.
|
|
